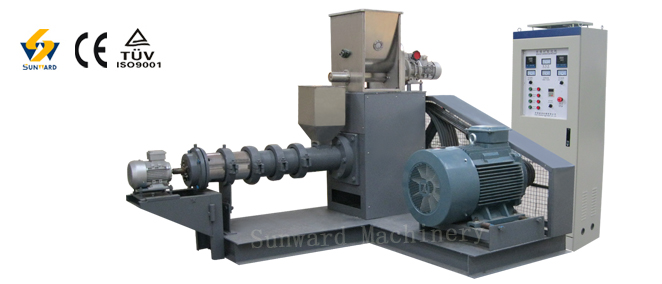

small single screw extruder machine




DLG80

Features:

1. Fish food processing line Description:Fish food processing line is suitable to make dry fish food pellet (catfish, aquarium, Tilapia, Freshwater fish and tropical fish etc.)
    1). All fish food equipments are made of stainless steel.
    2). The fish food whole line fully continuous and automatic.
    3). Sunward Company provide basic fish food receip according to your require.
    4). The final fish food shapes and sizes can be various by changing the mould.
    5). Supply different size mould free.
    6). Packing machine could be supplied to work with the line (depend on your require).
 2. Raw materials for fish food pellet:Most fish food pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder…..Animal peotein adopt fish meal, shrimp meal,crab meal, sleeve-fish meal and so on….you can add other ingredient according to the local fish live require.
  3. Fish food machine can make the follow fish food Products:This fish food processing line can be used to produce fish food pellets, the pellets size can be from 1.0mm to 9.0mm by adjusting the extruder dies, Meanwhile this line can  used to produce dog food, cat food by change some place. You can buy one whole line to make fish food and dog cat food together.
  4. The fish food extruder machine Capacity:100-150kg/h, 220-260kg/h, 400-500kg/h, 800-1000kg/h
 5. The fish food processing line (220-260kg/h)Flow chart:Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
 6. China standard industrial Voltage for the machine:Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers’ Local voltage according to different countries (400v 415v 480v…….).
 7. Machines materials:All the fish food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-
cleaning function.

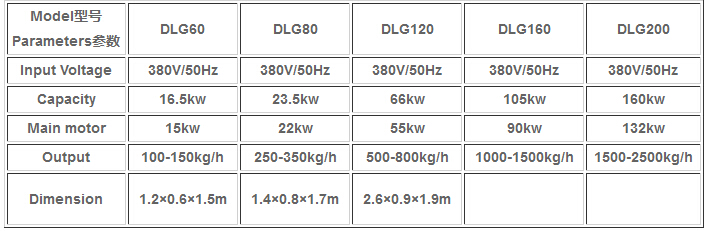

Technical parameters:
